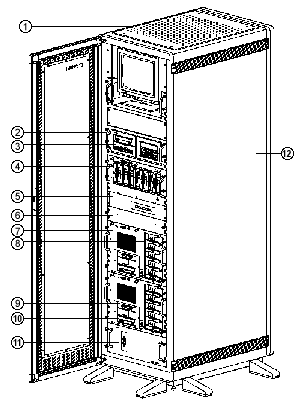

Overview

1. 42U Rack (optional)
2. Rack-Mountable SCSI Storage Expander (optional)
3. 4/8-GB DAT Drive (optional)
4. Rack-Mountable ProLiant Storage System Family (optional)
5. Keyboard/Monitor/Mouse Switch Box (optional) |
6. Rack Internal
Keyboard (optional, not shown)
7. Compaq ProLiant 5000R
8. Hot-Pluggable Drives
9. 1.44-MB Diskette Drive
10. 8X CD-ROM Drive
11. Rack-Mountable UPS (optional)
12. Rack Sidewall Kit (optional) |
BENEFITS AT A GLANCE
- High-end server delivering power and density for today's high performance application
- Space-saving rack-mountable form factor
- Supports up to four IntelPentium® Pro processors with redundant Processor Power Modules
- 256- or 512-KB high-speed 4-way set associative cache
- ECC-protected system bus and cache
- Dual peer PCI buses
- 64 or 128 MB of ECC memory, expandable up to 4 GB
- Up to 7 PCI and 3 EISA slots (8 total slots)
- Internal mass storage capacity up to 91 GB
- Preinstalled Netelligent 10/100 TX PCI UTP Controller
- Optional redundant NICs
- Redundant Power Supply upgrade available
- Integrated 32-bit Fast-Wide SCSI-2/E Controller
- Preinstalled 8X CD-ROM drive
- Compaq Insight Manager and SmartStart
- Full-Spectrum Fault Management
- Protected by Compaq Services, including a three-year on-site limited warranty and extended Pre-Failure
Warranty¹ which now covers Pentium Pro processors
¹Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.
|
